FEATURES
*LED Manufacture directly,customize accepted;Buy from professional,buy with confidence.
*This LED Strip is used with SMD2835 Chip, 15-20lm/LED,More bright than other cheap strips.

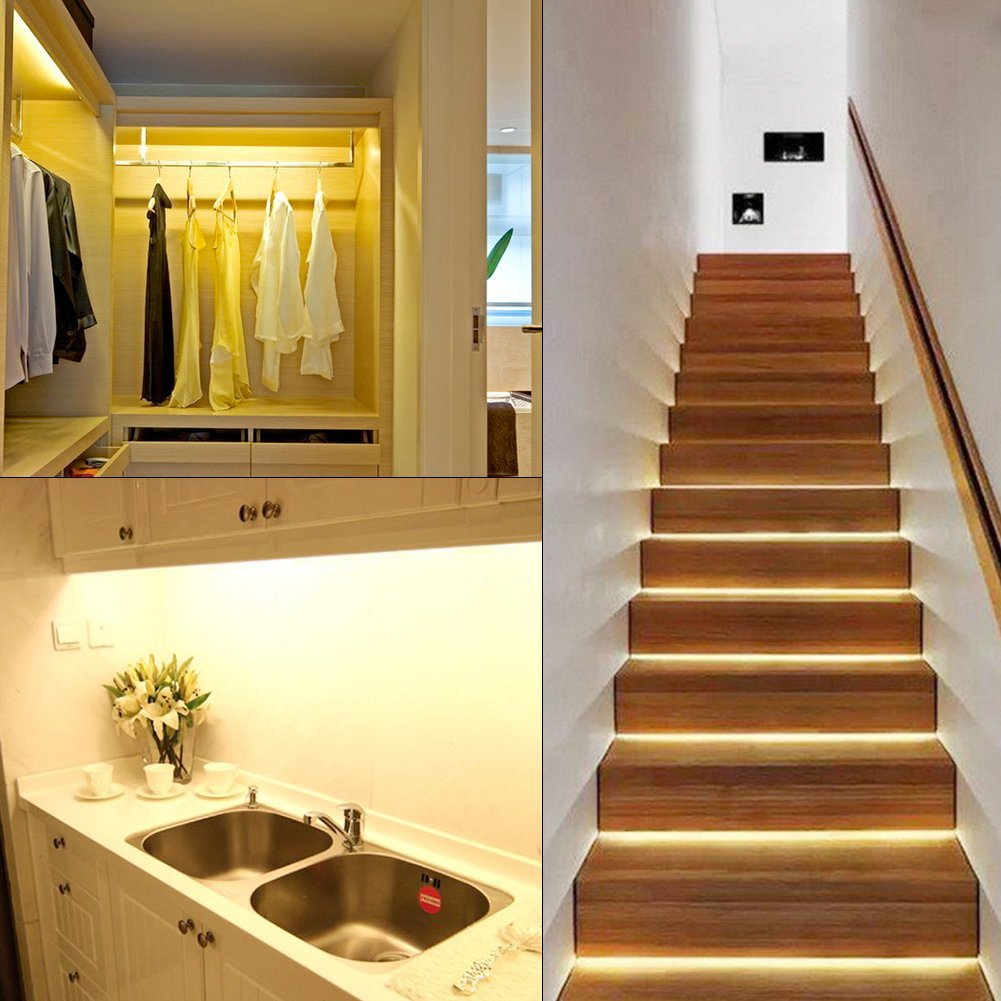

*High CRI90+,offers exceptional color consistency and color rendering to enhance colors of focal points,help show natural colors more vibrantly. *Application:Kitchen,Indoor lighting and signs or other sabinet show place.
High-End Product CRI90 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Medium Product CRI80 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Low-End Product CRI60 Single-Sided PCB, copper wire iron support LED component, less brightness, economical for temperary project.
SPECIFICATION

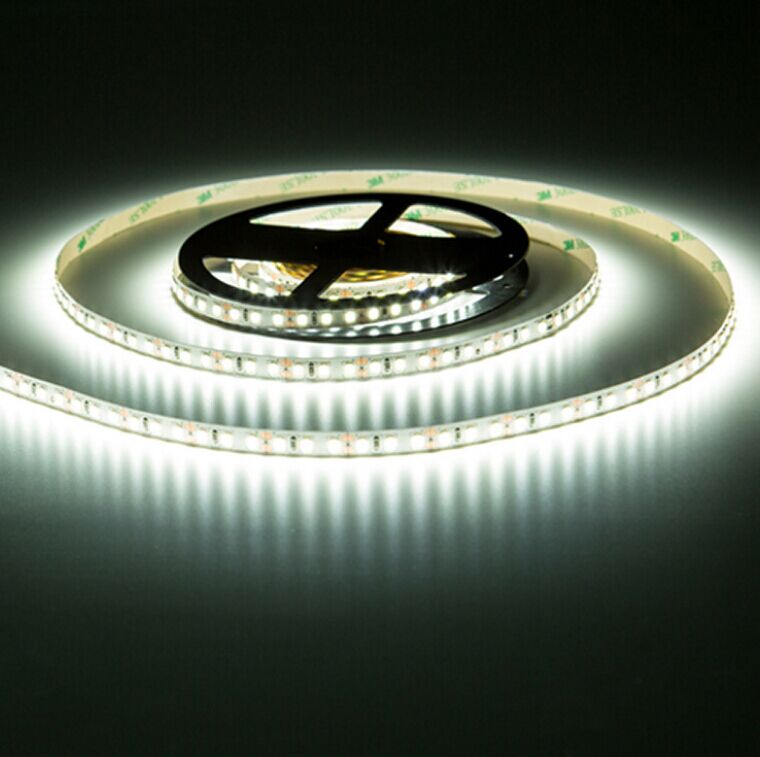

Item: High CRI>90 12VDC SMD2835 S-Shape LED flexible strip, 150LED per 2.5meter per roll
Code: HKF2835HCRI-S-60
LED Type: single color SMD2835
LED QTY.: 60LED/Meter
Input Voltage: 12V DC
Wattage (max): 12Watt/Meter
Cuttable: Every 3LED per 2'' can be cut
Size(W*H/mm): 8*2
Weight: 0.15kgs per 5meter per roll
Lumen Output: 900LM/Mtr @Warm White,950LM/Mtr @NaturalWhite, 1000LM/Mtr @Pure White

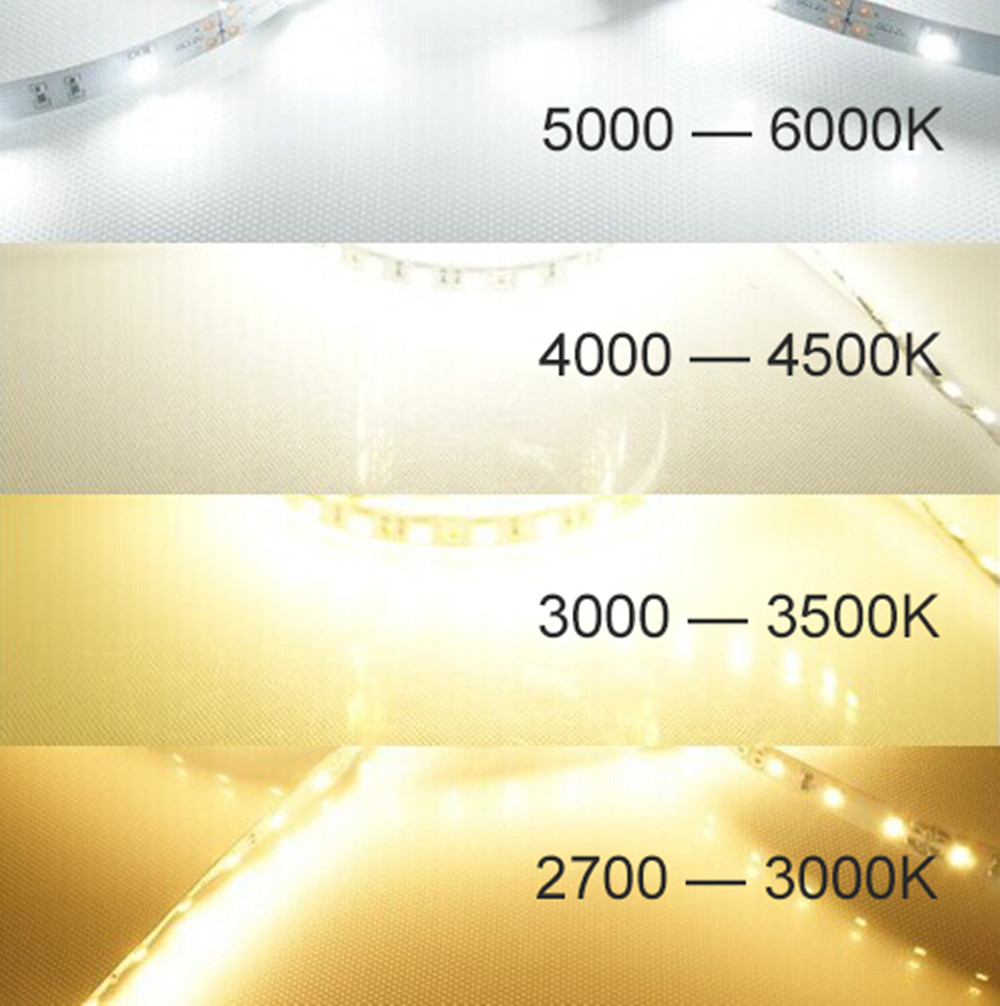

Light Color: Pure White(5500-6500K), Warm White(3000-3500K), Ultra Warm White(2700K), Natural White(4000-4500K)
CCT: 2700K-6500K
PCB color option: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use)
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
Packing: 2.5meter per roll packed in a static bag
PACKAGE INCLUDE
1x 8.2ft/2.5m 150LEDs SMD2835 CRI90+ LED Strip(Do not include power supply)

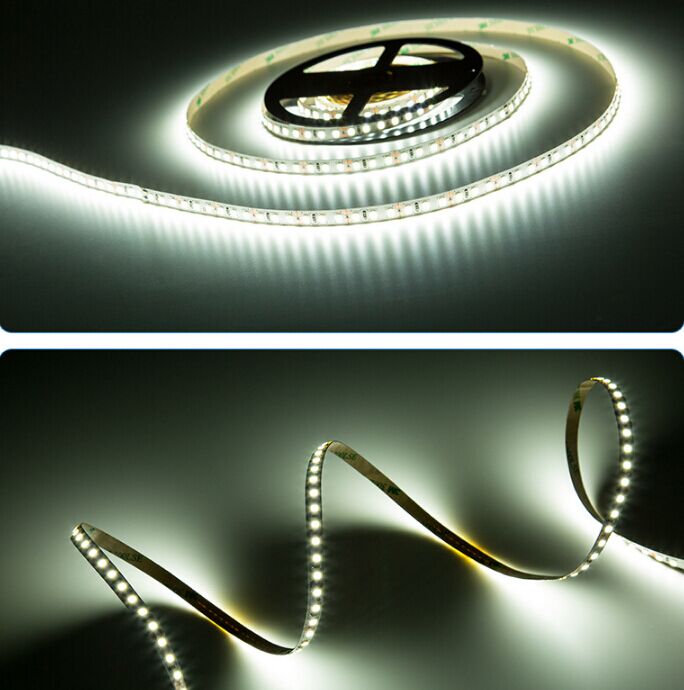

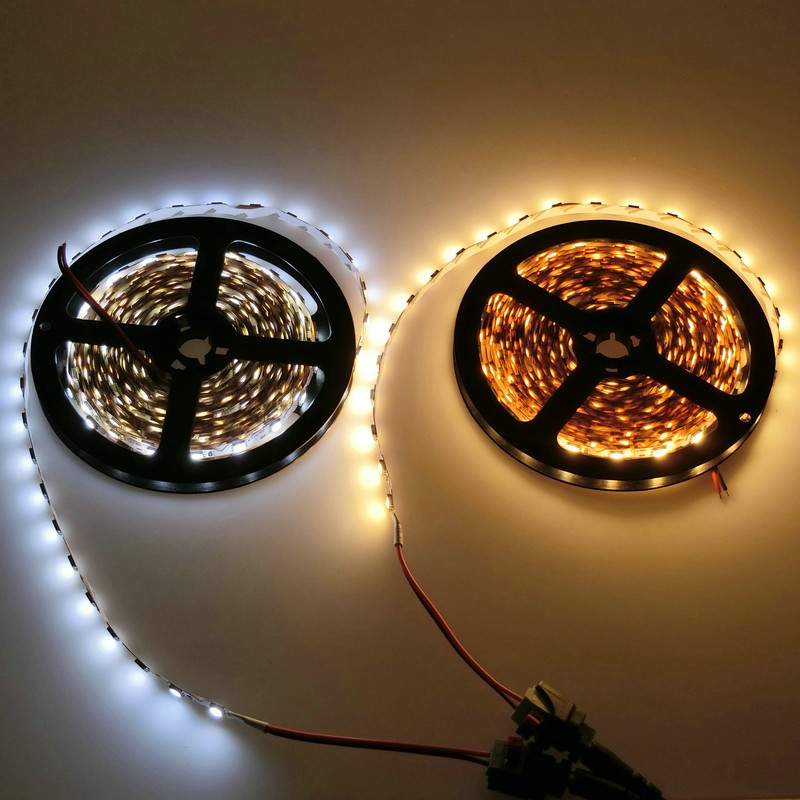

S-Shape, easy to bend to fit different corner degree need
How to power/control the strip
#1 When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
#2 The max length of a string of strips in serial is suggested to be 5meters, for too long, there is voltage drop which will cause dim at the back end.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
