FEATURES
*LED Manufacture directly,customize accepted;Buy from professional,buy with confidence.
*This LED Strip is used with SMD2835 Chip, 15-20lm/LED,More bright than other cheap strips.

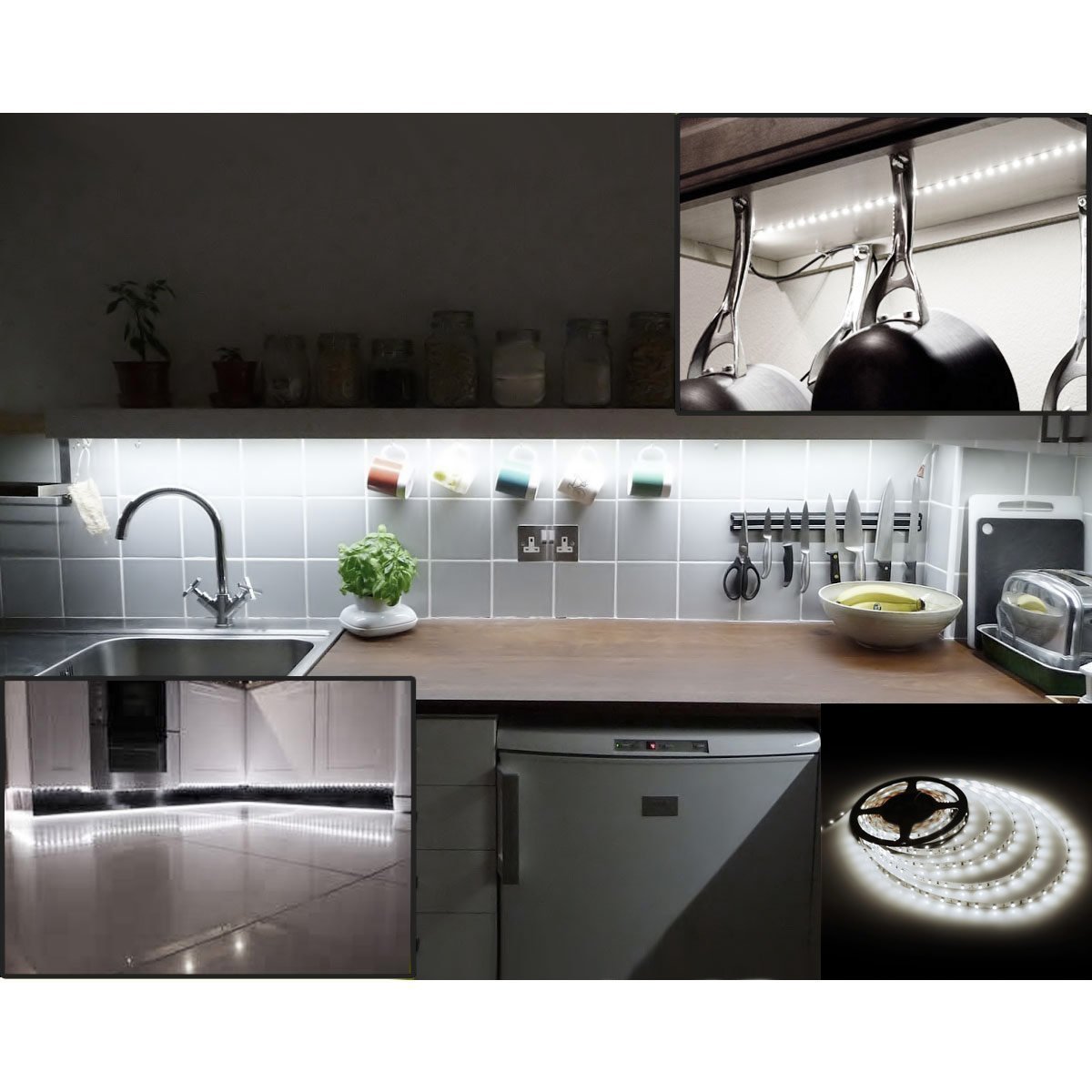

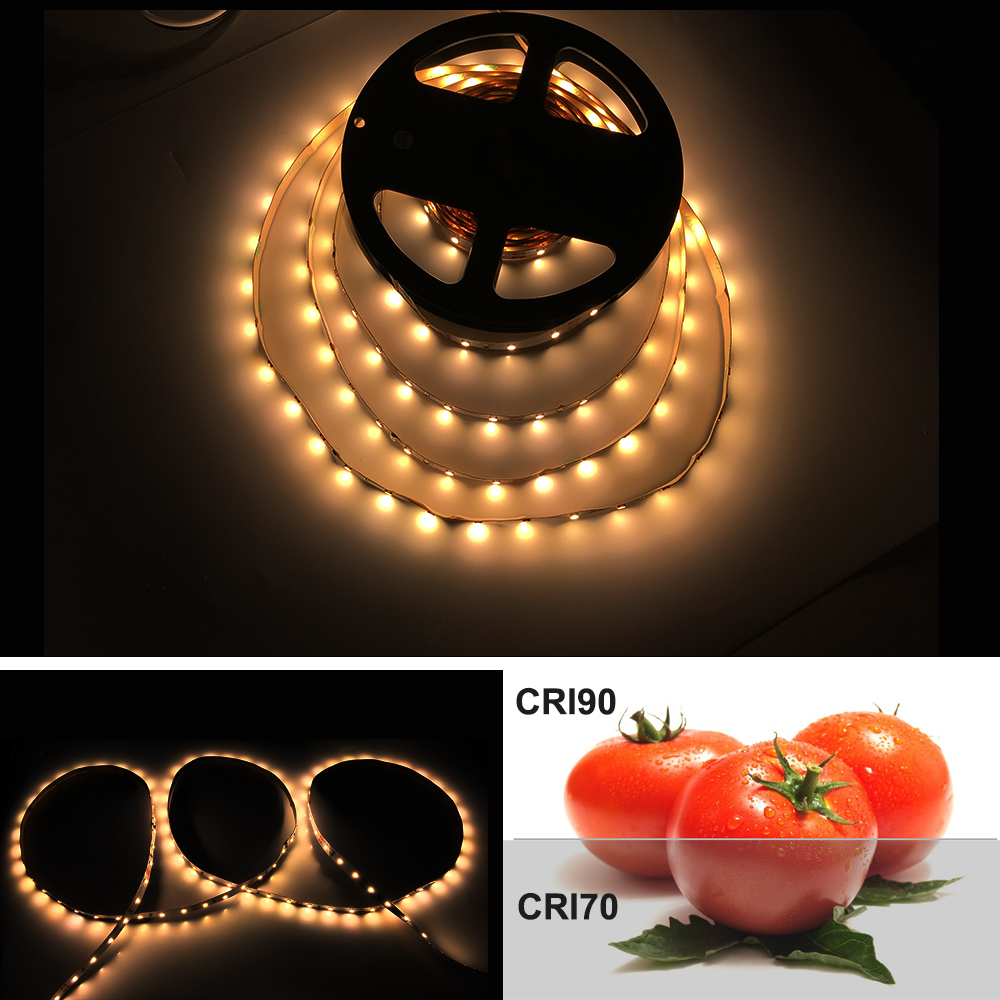

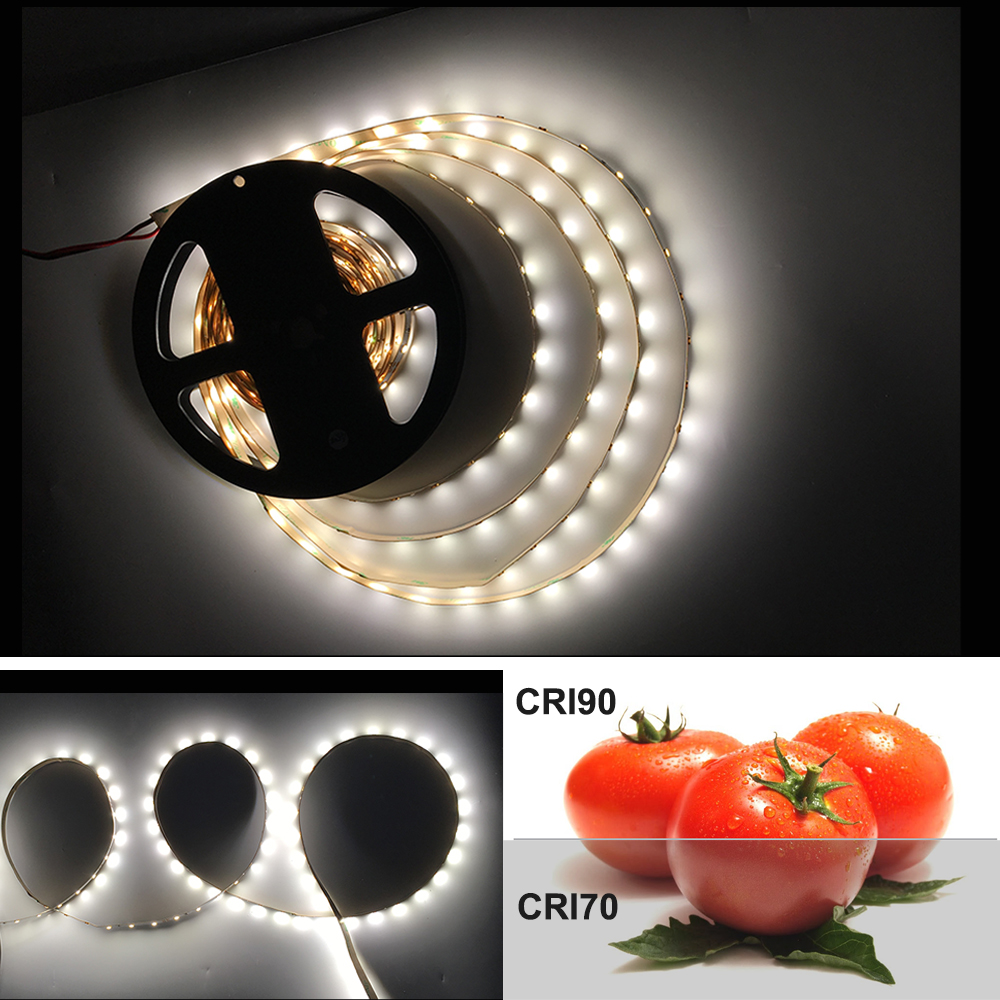

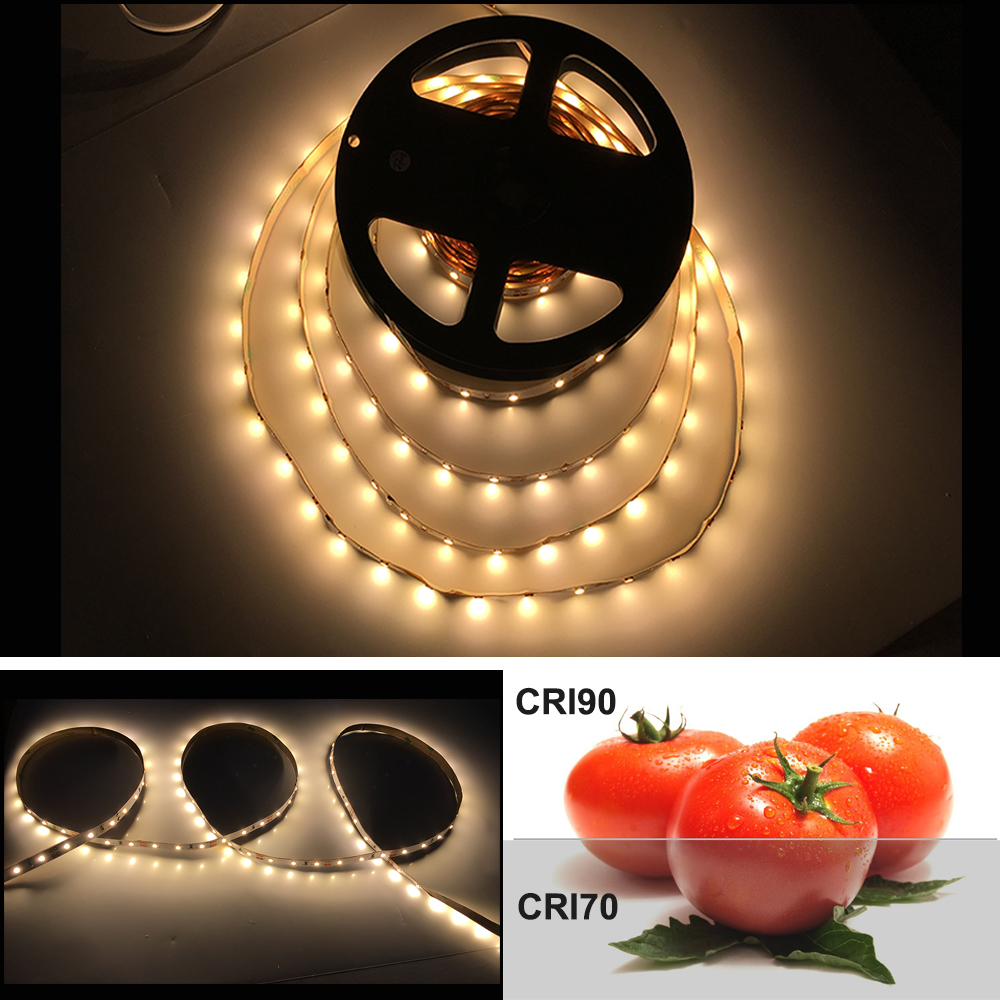

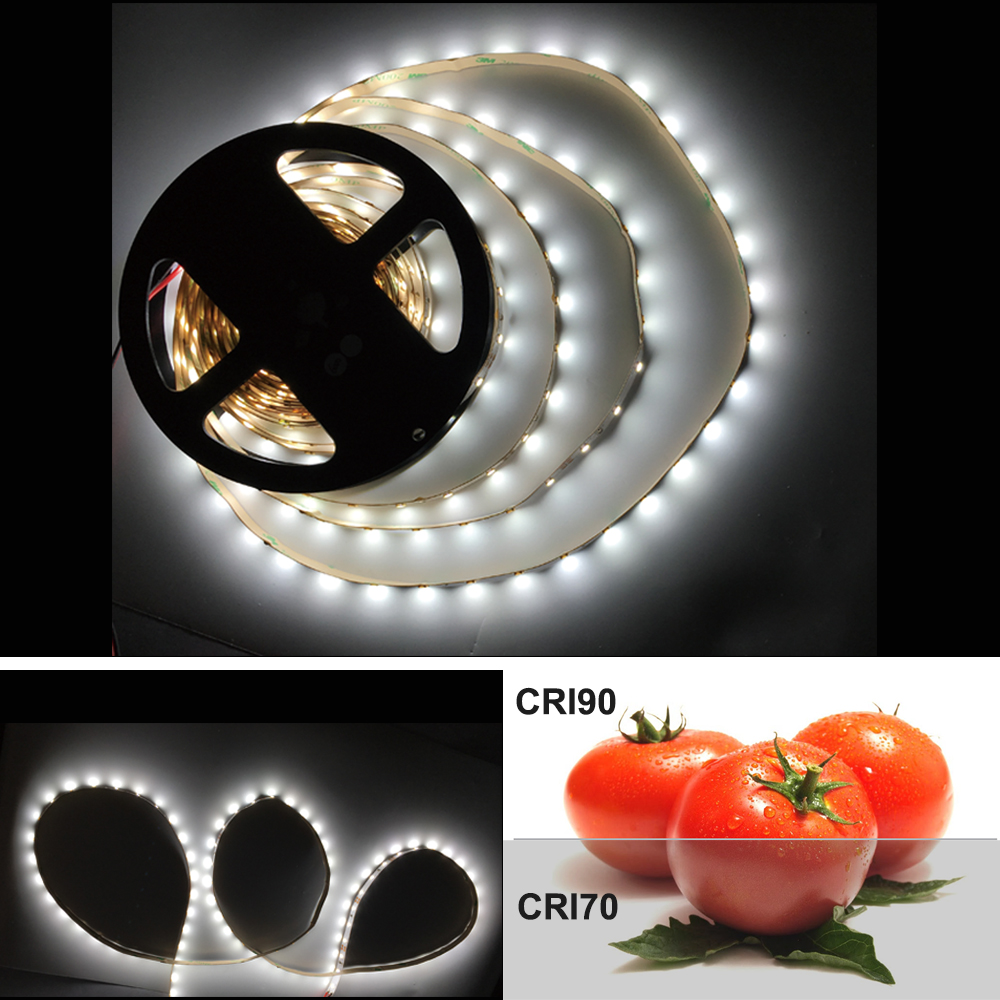

*High CRI90+,offers exceptional color consistency and color rendering to enhance colors of focal points,help show natural colors more vibrantly. *Application:Kitchen,Indoor lighting and signs or other sabinet show place.

High-End Product   CRI90   Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Medium Product      CRI80  Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Low-End Product    CRI60  Single-Sided PCB, copper wire iron support LED component, less brightness, economical for temperary project.

SPECIFICATION

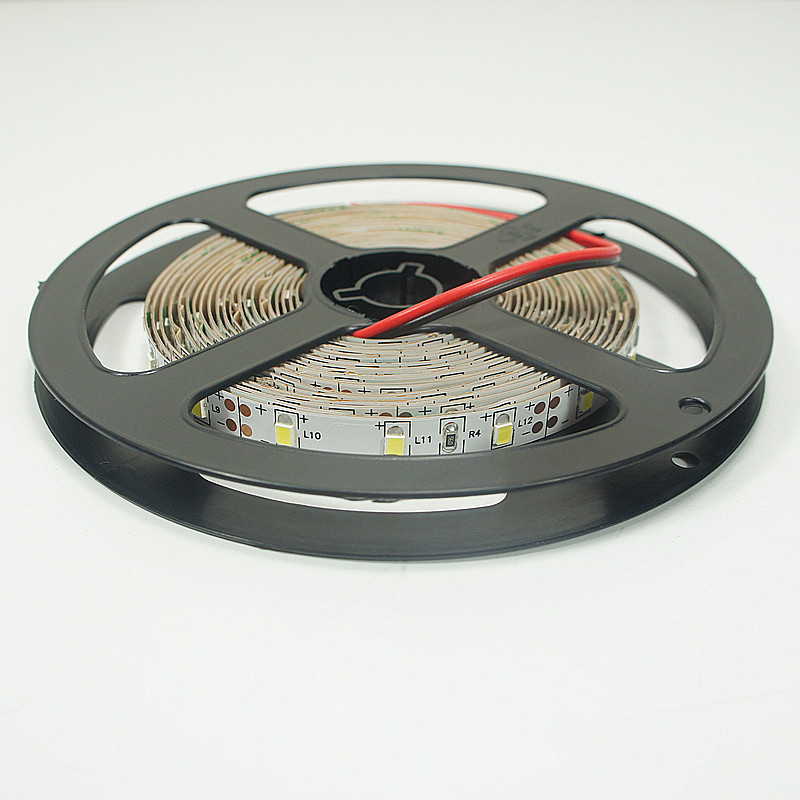

Item:  High CRI>90 12VDC SMD2835 LED flexible strip, 300LED per 5meter per roll
Code: HKF2835HCRI-300
LED Type: single color SMD2835
LED QTY.: 60LED/Meter
Input Voltage: 12V DC
Wattage (max): 12Watt/Meter

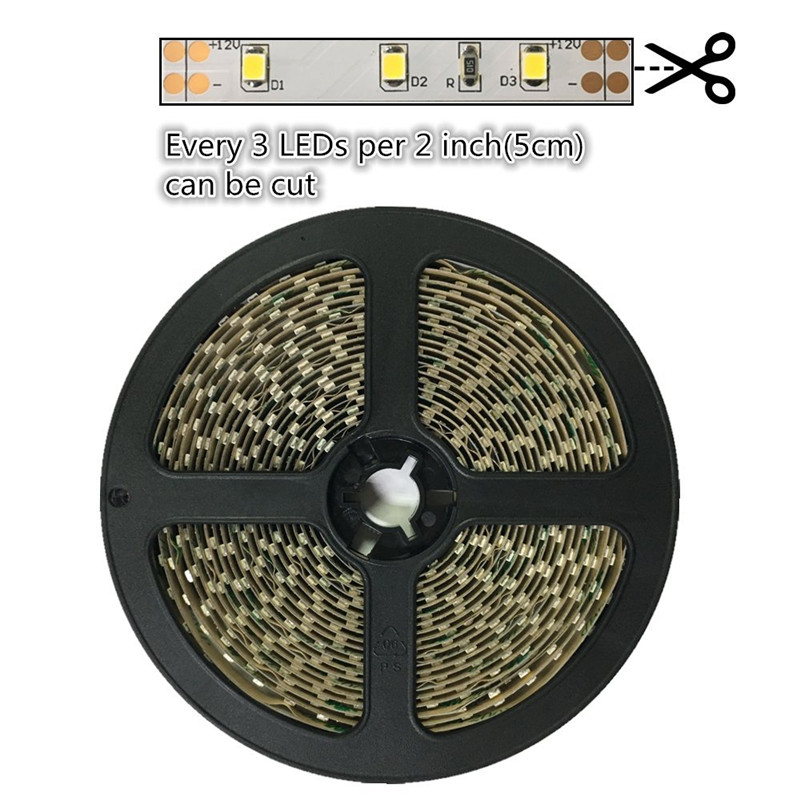

Cuttable: Every 3LED per 2'' can be cut
Size(W*H/mm): 8*2
Weight: 0.15kgs per 5meter per roll
Lumen Output:  1000-1100LM/Meter

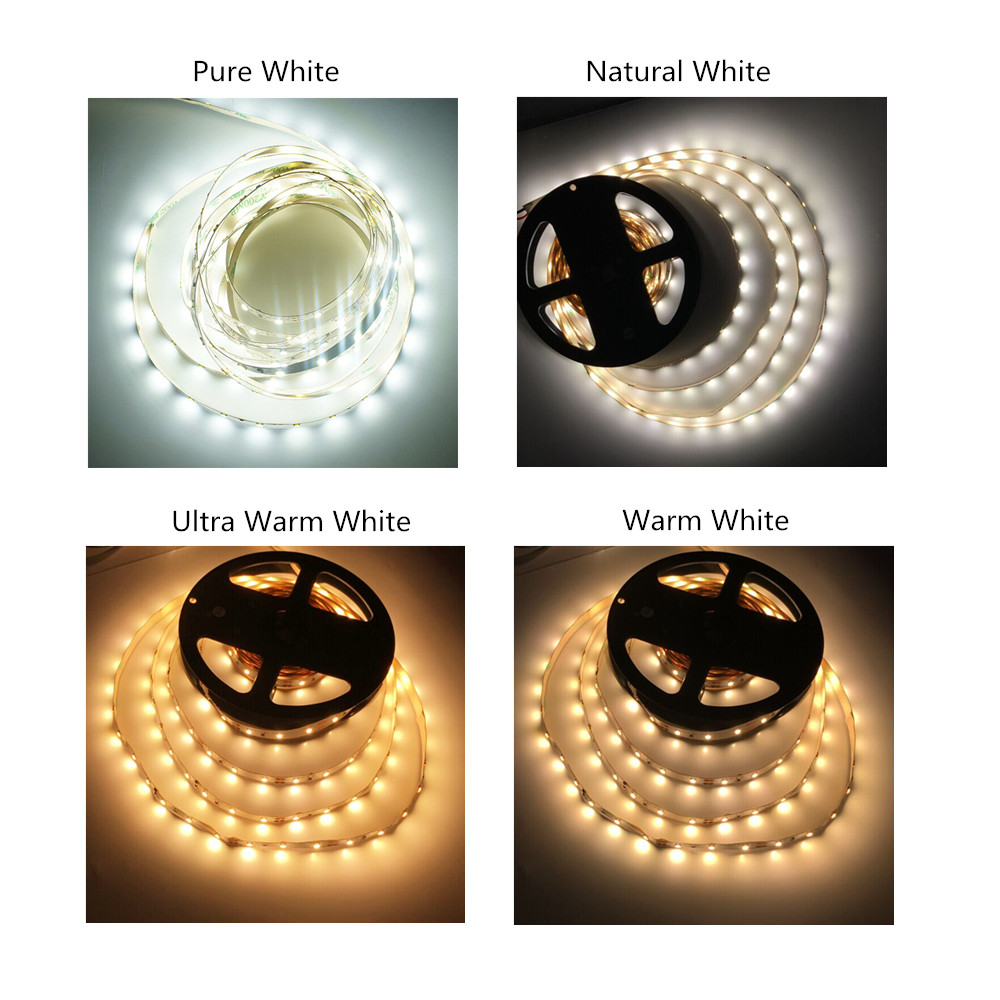

Light Color: Pure White(5500-6500K), Warm White(3000-3500K), Ultra Warm White(2700K), Natural White(4000-4500K)
CCT: 2700K-6500K
PCB color option: White
PCB Backing: Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use), Waterproof IP65, IP67, IP68
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
Packing: 5meter per roll packed in a static bag

PACKAGE INCLUDE
1x 16.4ft/5m 300LEDs SMD2835 CRI90+ LED Strip(Do not include power supply)

 Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

  WATERPROOF PROTECTION (the photo tells the difference on Protection Grade and Size Change)

*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.

How to power/control the strip

#1 When choosing the transformer, the wattage to choose depends on how many pieces light strips it power. And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to  avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

#2 The length run in a string of strips in serial is suggested to be 5meter max, if too long, there is voltage drop will cause dim at the back end of the string.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch

Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
