FEATURES
*LED Manufacture directly,customize accepted;Buy from professional,buy with confidence.
*This LED Strip is used with SMD2835 Chip, 15-20lm/LED,More bright than other cheap strips.

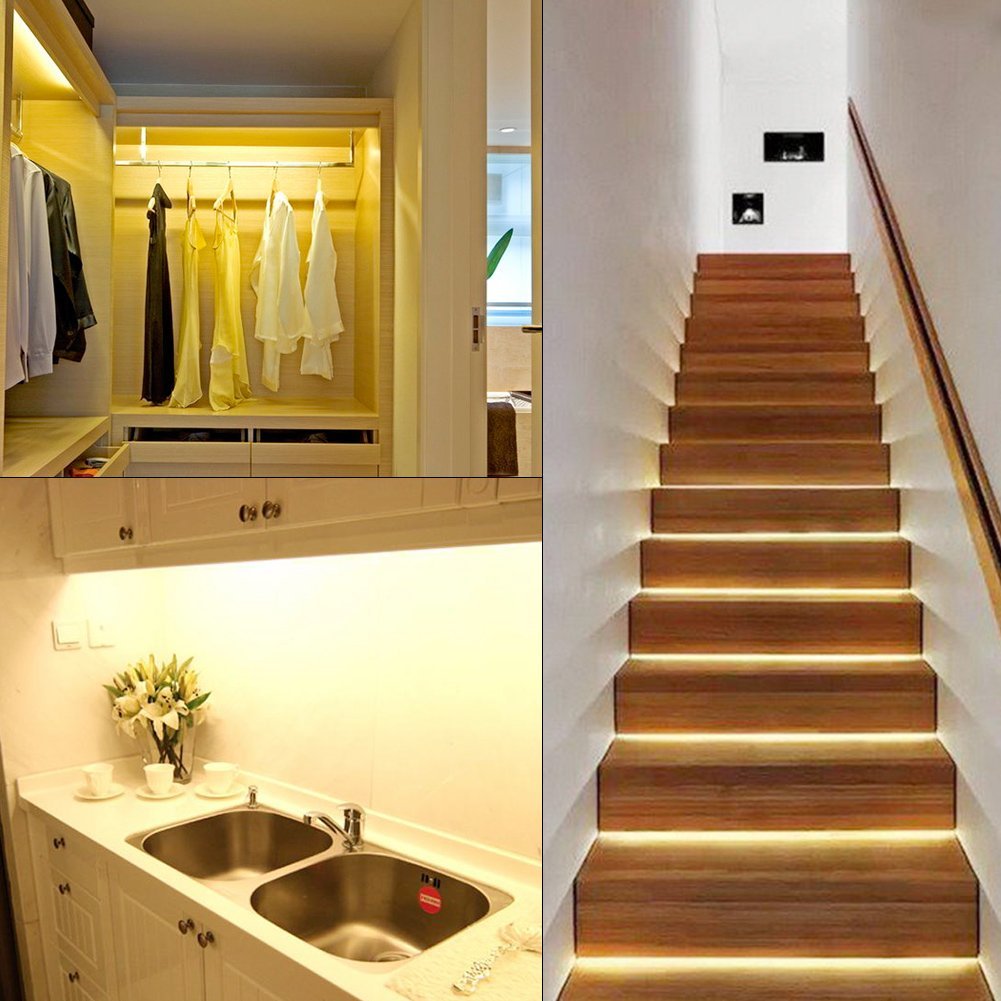

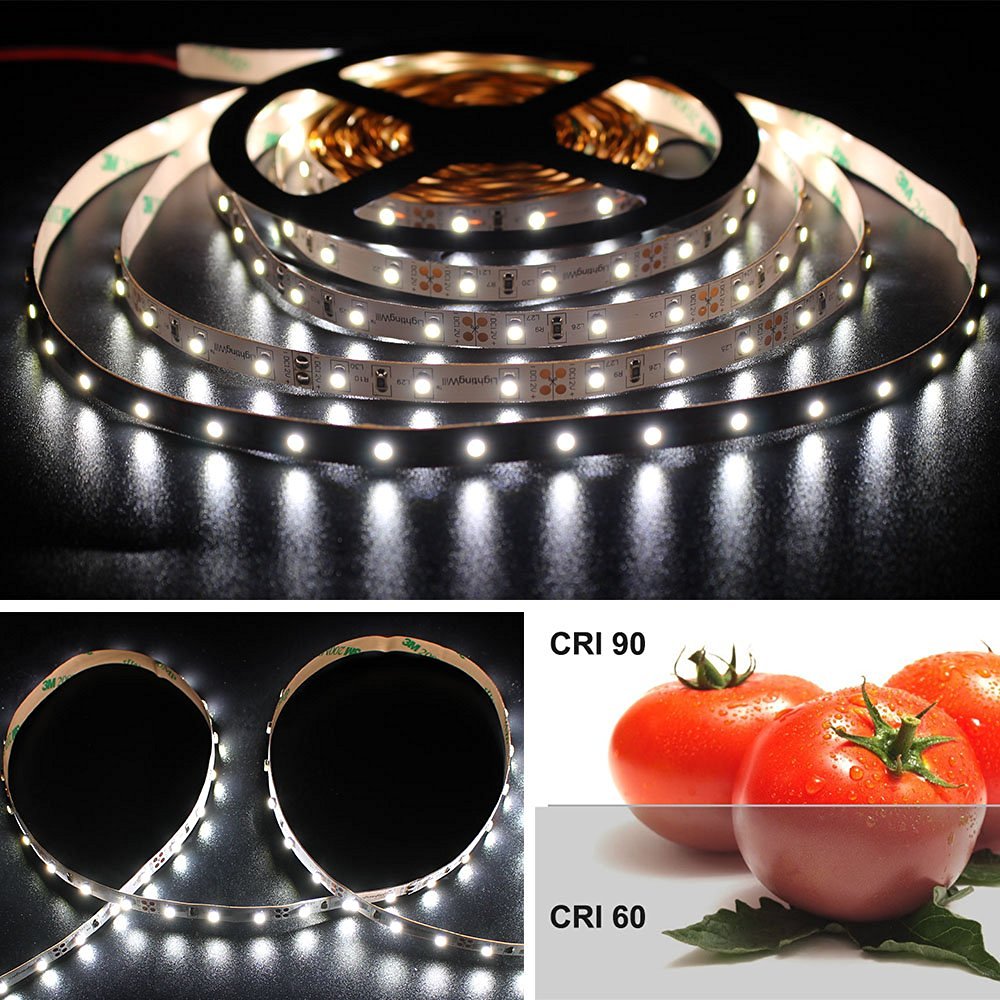

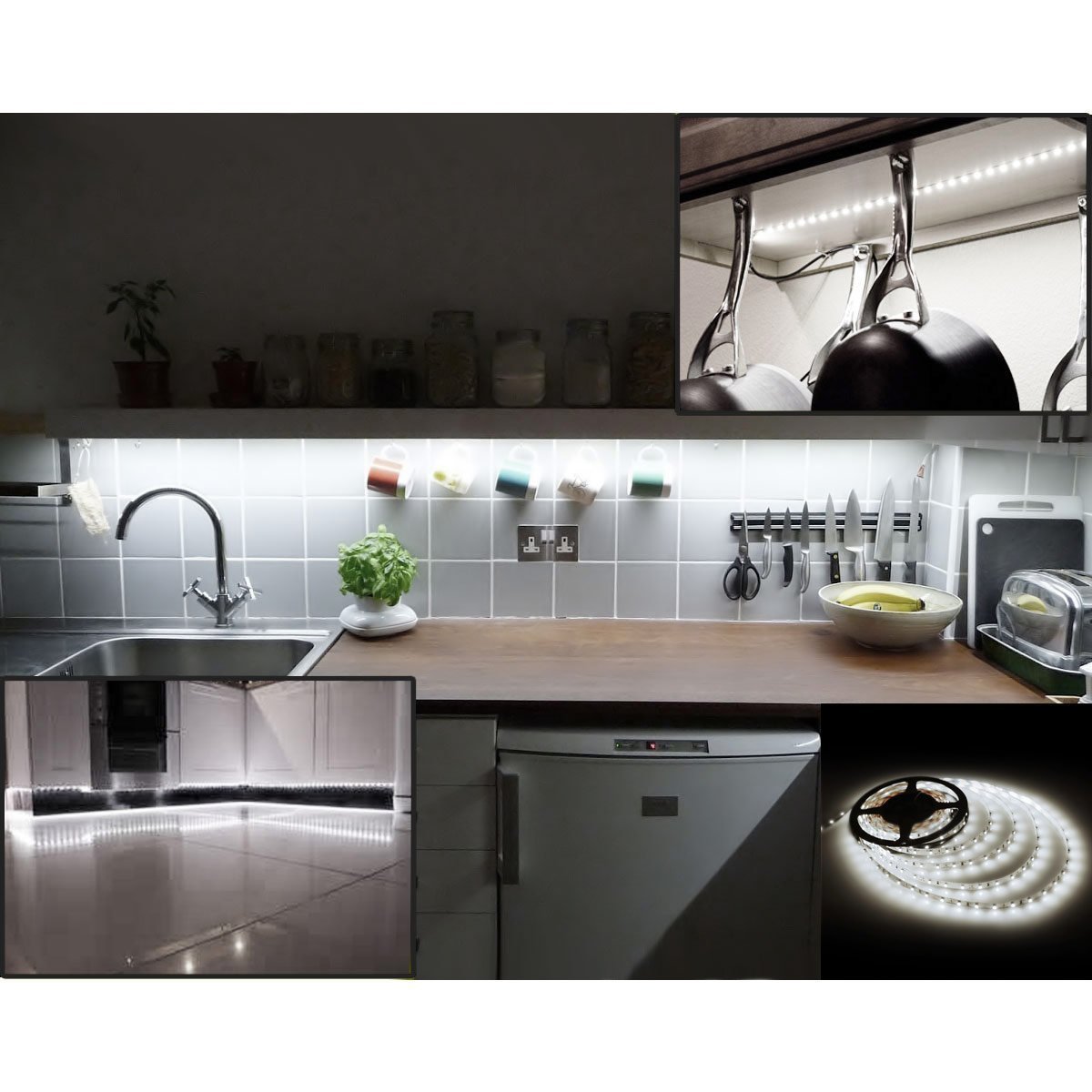

*High CRI90+,offers exceptional color consistency and color rendering to enhance colors of focal points,help show natural colors more vibrantly. *Application:Kitchen,Indoor lighting and signs or other sabinet show place.

High-End Product   CRI90   Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Medium Product      CRI80  Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Low-End Product    CRI60  Single-Sided PCB, copper wire iron support LED component, less brightness, economical for temperary project.

Sold By Meter Single Color LED Flexible Strips 12V DC Dimmable White PCB Tape Lights made with SMD2835, SMD3528, SMD5050 & SMD5630 Top Emitting LED

NOTE:

1) This link is for strip sold by 1meter per unit. For example,  if you add 3 unit into shopping cart and check out, then you will get 3 separate 1meter strips.

2) If you need 3 unit (3x1meter) make into 1piece of 3meter (1x3meter) long, please left us message when check out. Or email us (info@lightingwill.com) your order # and your requirement after place the order.

Specifications

Model: SMD2835-300, 60LED/Meter

Input Voltage: 12V DC

Wattage: <12 Watt/Meter

Current Draw: <1Amp/Meter

PCB Width: 8mm

Cut Section: Every 3LED in 2'' (5cm) can be cut

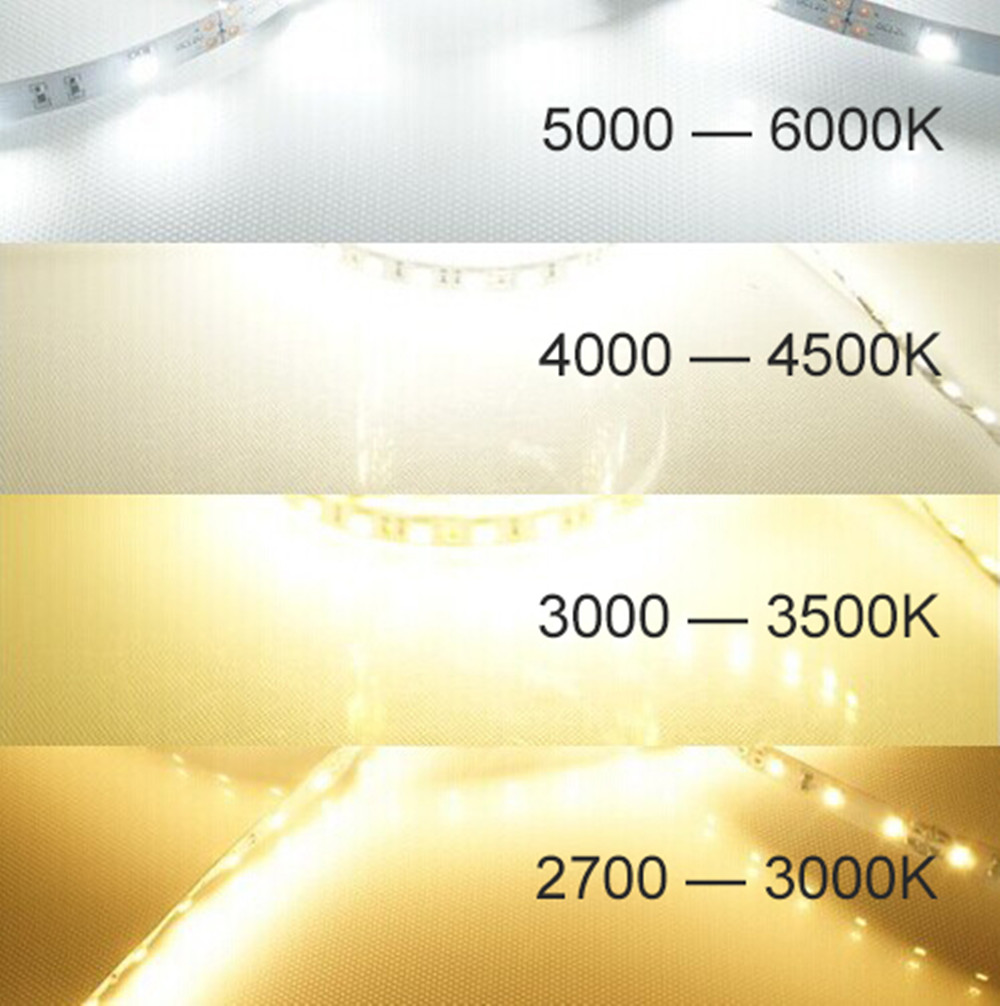

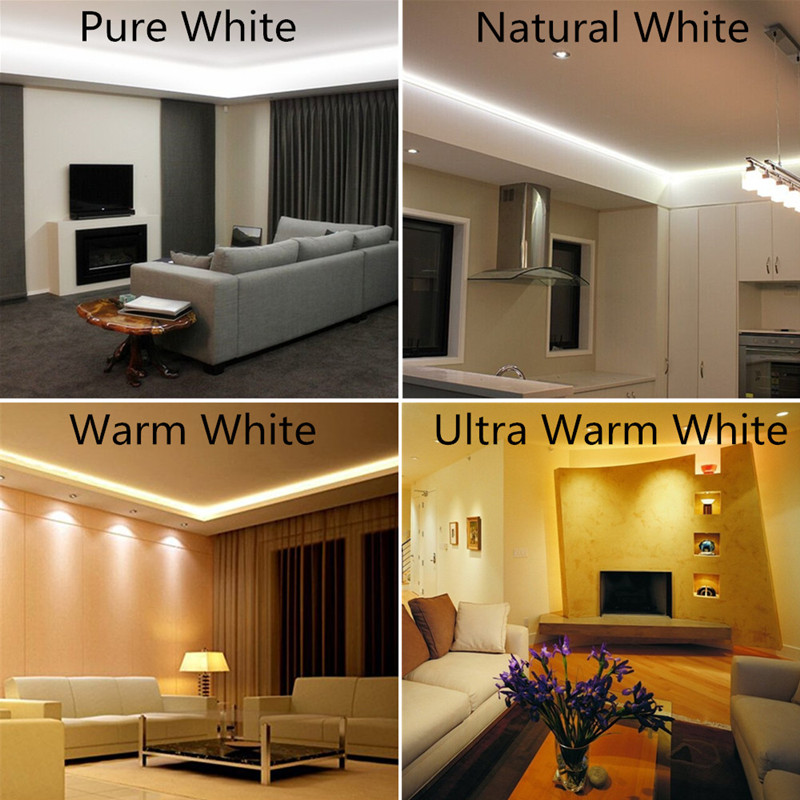

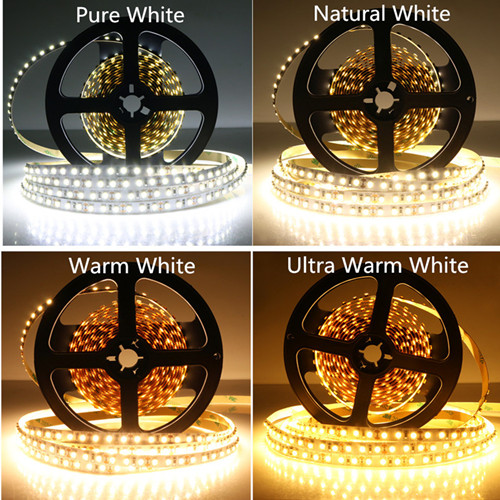

Available Color: Ultra Warm White (2700K-3000K), Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5500K-6000K)

IP Grade Options: Non-Waterproof IP33, Waterproof IP65, Waterproof IP67 and Waterproof IP68

Color Rendering Index: CRI80, CRI90

Model: SMD3528-150, 30LED/Meter

Input Voltage: 12V DC

Wattage: <2.4 Watt/Meter

Current Draw: <0.2 Amp/Meter

PCB Width: 8mm

Cut Section: Every 3LED in 4'' (10cm) can be cut

Available Color: Ultra Warm White (2700K-3000K), Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5500K-6000K), Red, Green, Blue, Yellow, Purple, Orange (Amber)

IP Grade Options: Non-Waterproof IP33, Waterproof IP65, Waterproof IP67 and Waterproof IP68

Color Rendering Index: CRI80, CRI90 ( CRI only talks for white color).

Model: SMD3528-300, 60LED/Meter

Input Voltage: 12V DC

Wattage: <4.8 Watt/Meter

Current Draw: <0.4 Amp/Meter

PCB Width: 8mm

Cut Section: Every 3LED in 2'' (5cm) can be cut

Available Color: Ultra Warm White (2700K-3000K), Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5500K-6000K), Red, Green, Blue, Yellow, Purple, Orange (Amber)

IP Grade Options: Non-Waterproof IP33, Waterproof IP65, Waterproof IP67 and Waterproof IP68

Color Rendering Index: CRI80, CRI90 ( CRI only talks for white color).

Model: SMD3528-600, 120LED/Meter

Input Voltage: 12V DC

Wattage: <9.6 Watt/Meter

Current Draw: <0.8 Amp/Meter

PCB Width: 8mm

Cut Section: Every 3LED in 1'' (2.5cm) can be cut

Note: After cut, can only use the 2016 updated version connector for quick solderless connection.

Available Color: Ultra Warm White (2700K-3000K), Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5500K-6000K), Red, Green, Blue, Yellow, Purple, Orange (Amber)

IP Grade Options: Non-Waterproof IP33, Waterproof IP65, Waterproof IP67

Color Rendering Index: CRI80, CRI90 ( CRI only talks for white color).

Model: SMD3528-1200, 240LED/Meter (Double Row LED Strip)

Input Voltage: 12V DC

Wattage: <19.2 Watt/Meter

Current Draw: <1.6 Amp/Meter

PCB Width: 15mm

Cut Section: Every 6LED in 1'' (2.5cm) can be cut

Note: This double row strip has NO compatible LED strip connectors.

Available Color: Ultra Warm White (2700K-3000K), Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5500K-6000K), Red, Green, Blue, Yellow, Purple, Orange (Amber)

IP Grade Options: Non-Waterproof IP33, Waterproof IP65, Waterproof IP67

Color Rendering Index: CRI80, CRI90 ( CRI only talks for white color).

Model: SMD5050-150, 30LED/Meter

Input Voltage: 12V DC

Wattage: <7.2 Watt/Meter

Current Draw: <0.6 Amp/Meter

PCB Width: 10mm

Cut Section: Every 3LED in 4'' (10cm) can be cut

Available Color: Ultra Warm White (2700K-3000K), Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5500K-6000K), Red, Green, Blue, Yellow, Purple, Orange (Amber)

IP Grade Options: Non-Waterproof IP33, Waterproof IP65, Waterproof IP67 and Waterproof IP68

Color Rendering Index: CRI80, CRI90 ( CRI only talks for white color).

Model: SMD5050-300, 60LED/Meter

Input Voltage: 12V DC

Wattage: <14.4 Watt/Meter

Current Draw: <1.2 Amp/Meter

PCB Width: 10mm

Cut Section: Every 3LED in 2'' (5cm) can be cut

Available Color: Ultra Warm White (2700K-3000K), Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5500K-6000K), Red, Green, Blue, Yellow, Purple, Orange (Amber)

IP Grade Options: Non-Waterproof IP33, Waterproof IP65, Waterproof IP67 and Waterproof IP68

Color Rendering Index: CRI80, CRI90 ( CRI only talks for white color).

Model: SMD5050-600, 120LED/Meter (Double Row LED Strip)

Input Voltage: 12V DC

Wattage: <28.8 Watt/Meter

Current Draw: <2.4 Amp/Meter

PCB Width: 15mm

Cut Section: Every 6LED in 2'' (5cm) can be cut

Note: This double row strip has NO compatible LED strip connectors.

Available Color: Ultra Warm White (2700K-3000K), Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5500K-6000K), Red, Green, Blue, Yellow, Purple, Orange (Amber)

IP Grade Options: Non-Waterproof IP33, Waterproof IP65, Waterproof IP67

Color Rendering Index: CRI80, CRI90 ( CRI only talks for white color).

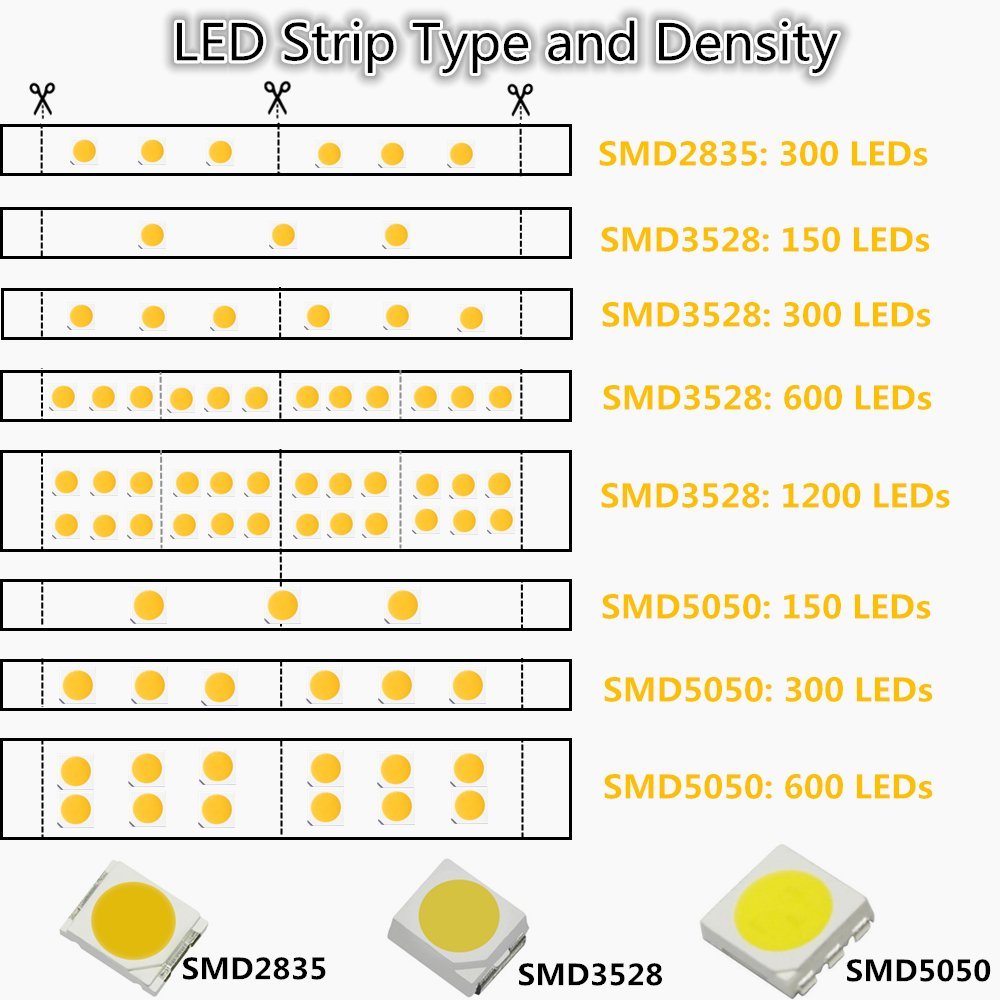

Different Strip Models

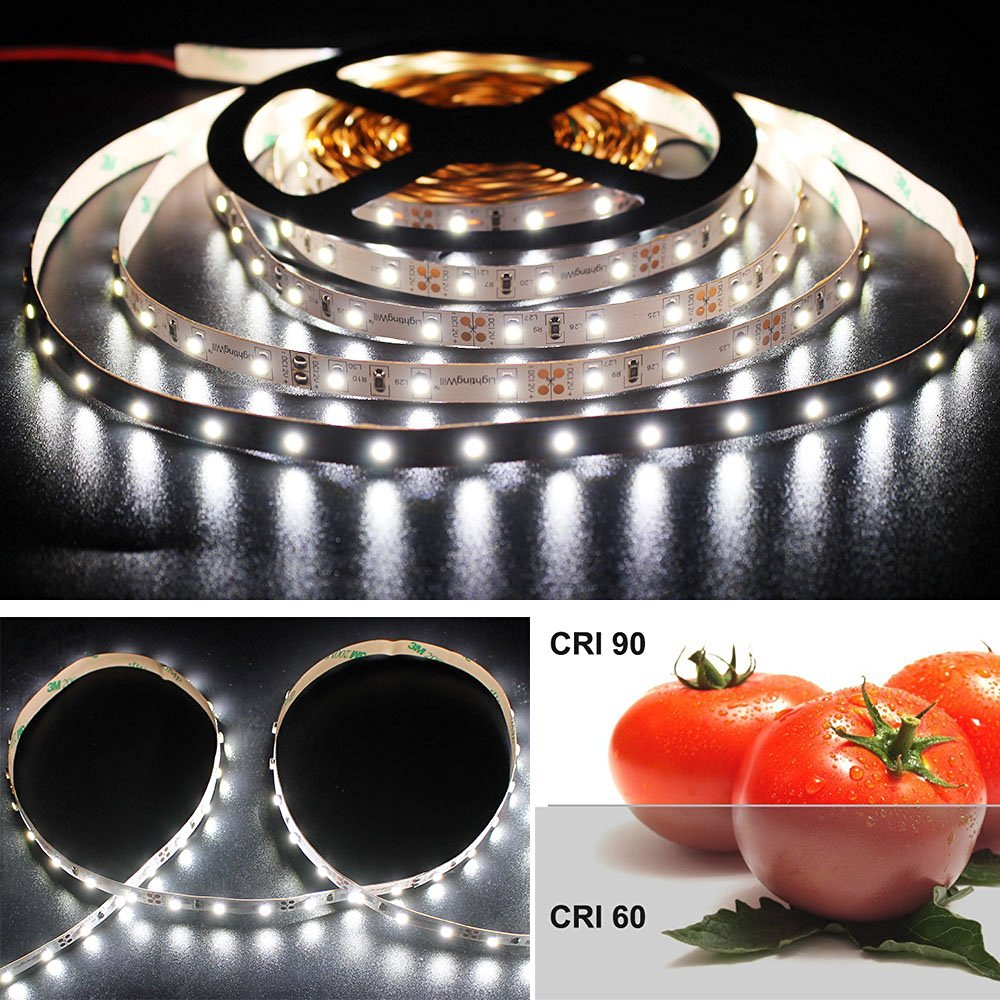

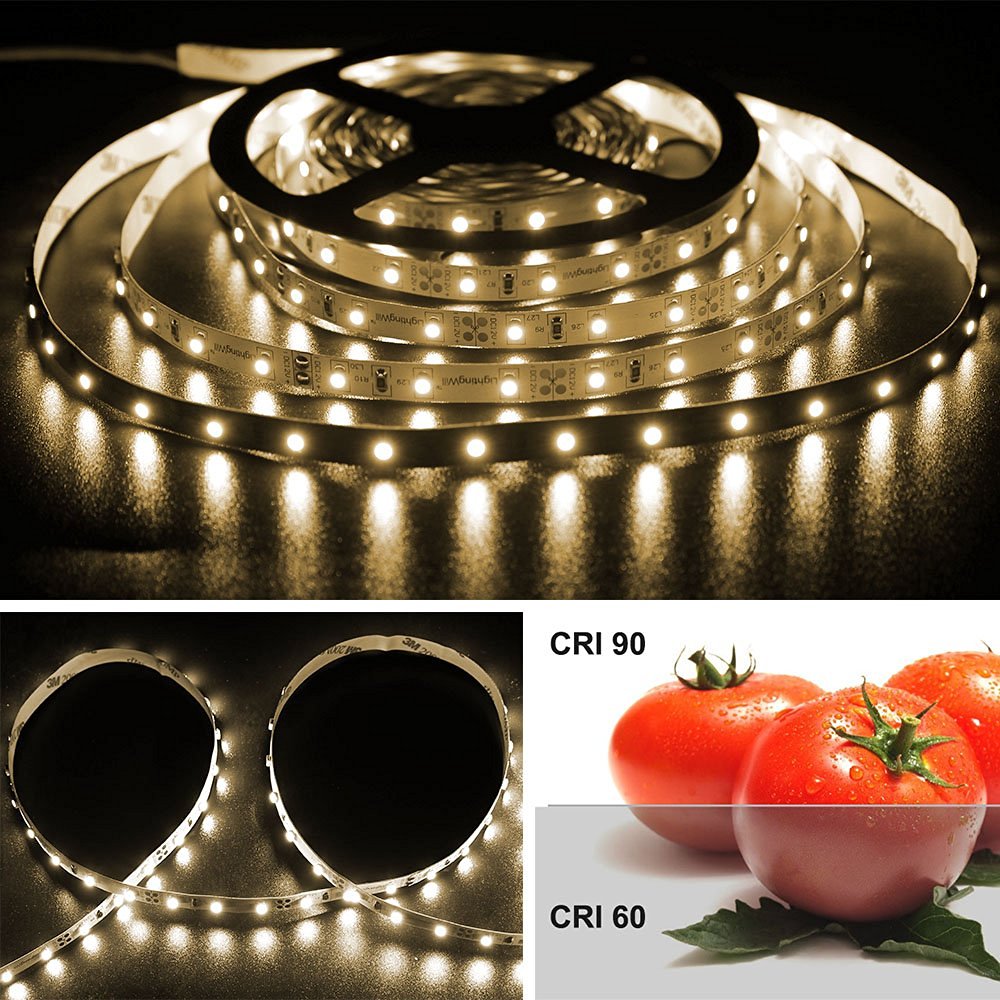

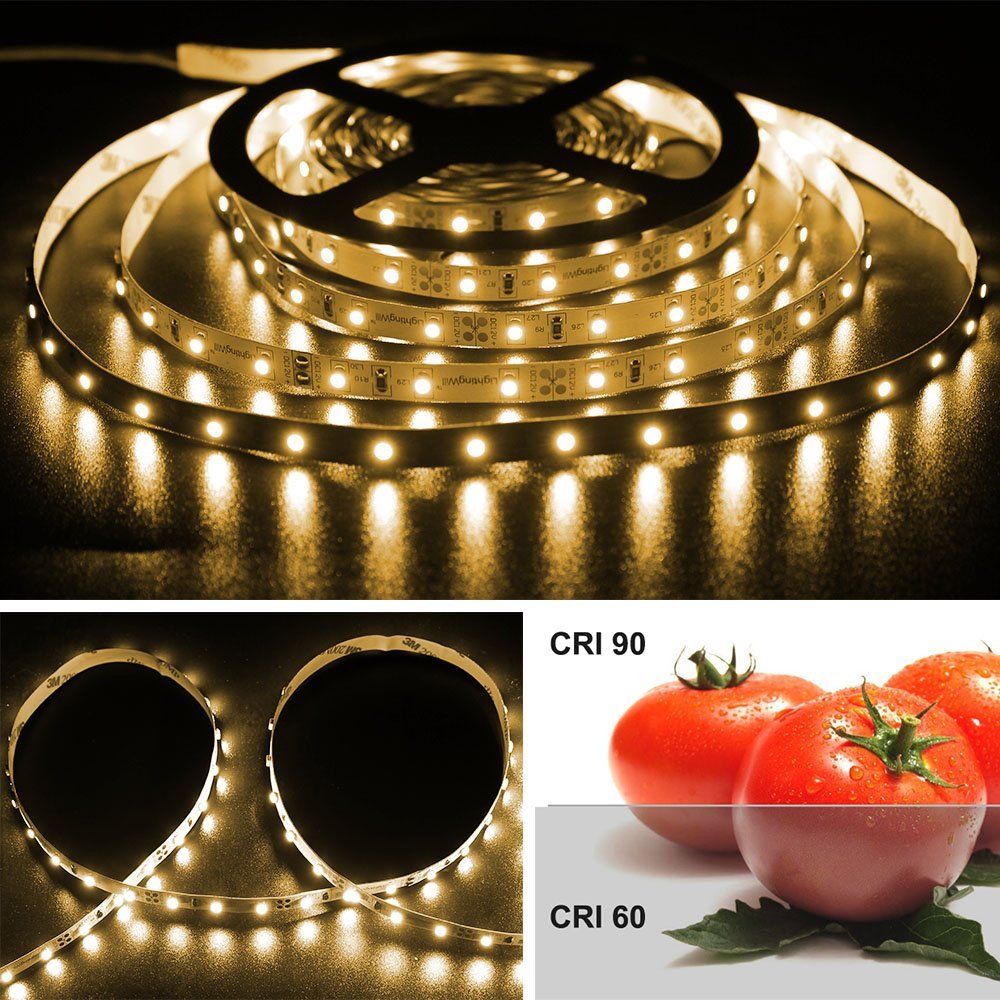

CRI Difference ( the CRI is only for WHITE color)

High-End Product   CRI90   Double layer PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Medium Product      CRI80  Double layer PCB, gold  wire copper support LED component, more reliable and less brightness depreciation.
Low-End Product    CRI60  Single layer PCB, copper wire iron support LED component, less brightness, economical for temperary project.

How to power/control the strip

#1 When choosing the transformer, the wattage to choose depends on how many pieces light strips it power. And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to  avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

#2 The length run in a string of strips in serial is suggested to be 5meter max, if too long, there is voltage drop will cause dim at the back end of the string.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch

Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
