DC12V 84W 7Amp 5Meter (16.4Ft) SMD2538 600LEDs/Roll Color Rendering Index CRI80 Flexible LED Strips 1900LM/M 120LEDs/M 16.8W Per Meter Ribbon Lamp 8mm Wide White PCB
FEATURES

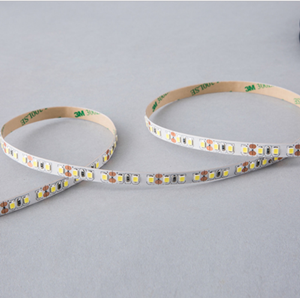

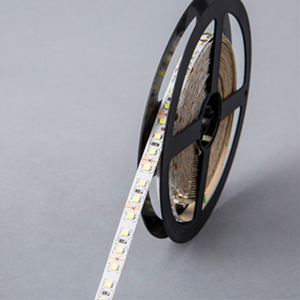

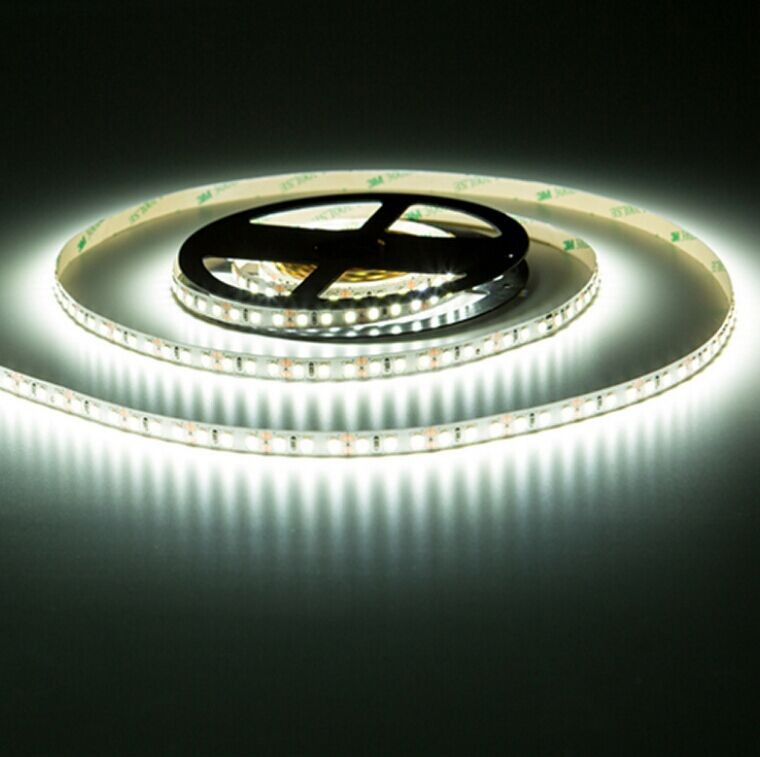

*SMD2835-600LED, 12VDC 84W 7Amp, 5Meter/roll, Dimmable single row LED Flexible Strip
*CRI>80, Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
*East Cuttable and Linkable: every 3LED per 1inch(2.5cm) section can be cut; No solderness quick connectors available to use because of too narrow space after cut.
*Easy Installtion: 8mm wide white PCB background with double-sided adhesive tape backing; With DC female to screw terminal end adapter be able to plug to plug-in type transformer/dimmer

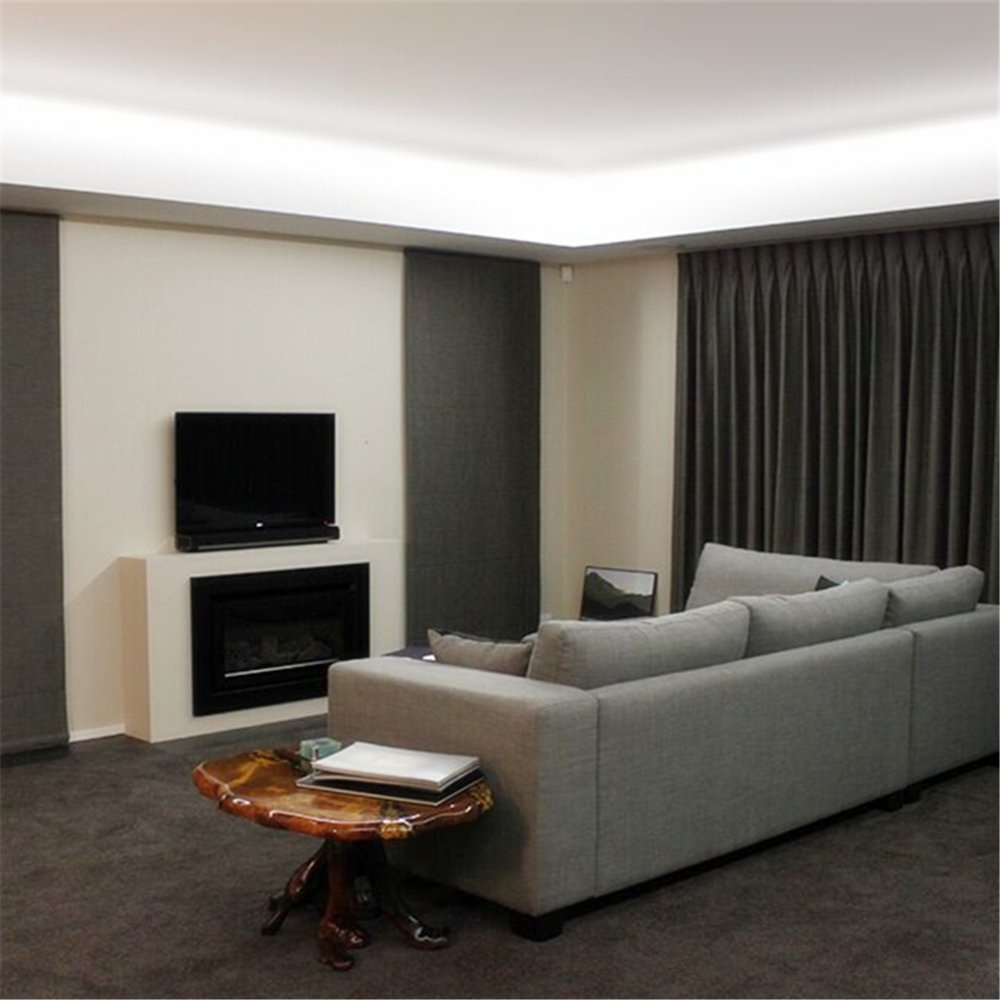

*Very suitable for indoor and outdoor dry location lighting and decor. Such as kitchen, under cabinet, dining room, bedroom, garden, patio, balcony, party, wedding etc.
High-End Product CRI90 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Medium Product CRI80 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Low-End Product CRI60 Single-Sided PCB, copper wire iron support LED component, less brightness, economical for temperary project.
SPECIFICATION
Item
|
SMD2835-600 5Meter 12VDC 84W 7Amp LED Flexible Strip
|
LED Type
|
Single Chip SMD3528
|
LED QTY.
|
600LED/5mtr
|
Input Voltage
|
12V DC
|
Wattage (max)
|
84W
|
Cuttable Every
|
3LED per 1'' can be cut
|
Size(W*H/mm)
|
8*2 for non-waterproof; 10*4 for waterproof
|
Weight
|
0.15kgs/roll for non-waterproof; 0.25kg for waterproof
|

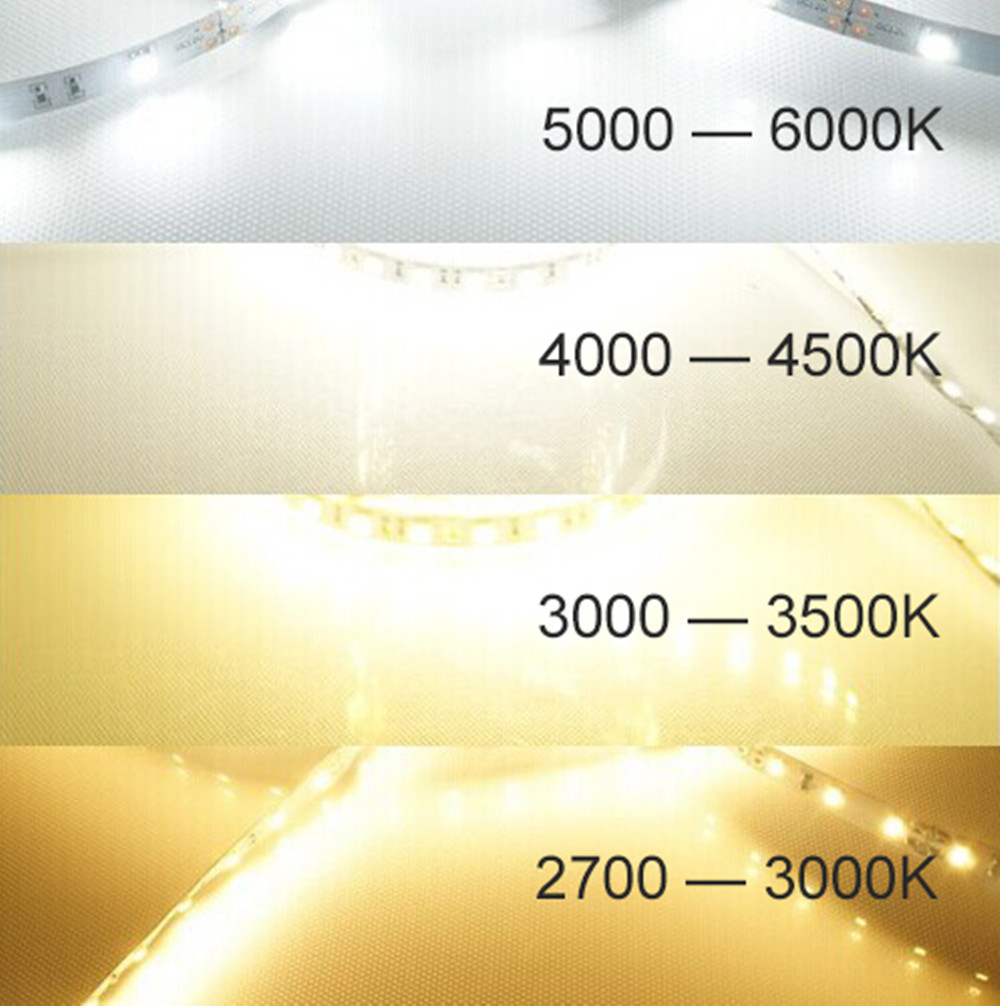

Lumen Output
|
Pure White
|
5000K-6000K
|
1900-2000LM/Mtr
|
|
Nature White
|
4000K-4500K
|
1900-2000LM/Mtr
|
|
Warm White
|
3000K-3500K
|
1800-1900LM/Mtr
|
|
Ultra Warm White
|
2700K-3000K
|
1700-1800LM/Mtr
|
PCB color
|
White
|
PCB Backing
|
Double-Sided Adhesive
|
Beam Angle
|
120°
|
Dimming
|
Yes, PWM dimmable with 12V LED Dimmer; Or 120V/220V AC wall dimmer dimmable with dimmable LED transformer.
|
Waterproof Type
|
Non-waterproof; Waterproof IP65, IP67 and IP68
|
Pre-wiring
|
20cm Red/Black Lead wire at one end of the strip
|
Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)
Waterproof Strip Dimension
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
How to power/control the strip
#1 When choosing the transformer, the wattage to choose depends on how many pieces light strips it power. And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
#2 The length run in a string of strips in serial is suggested to be 5meter max, if too long, there is voltage drop will cause dim at the back end of the string.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
