DC12V <36W, 3Amp 5Meter (16.4Feet) SMD5050 150LED RGB Multi-Color Changing Flexible LED Strips 30LEDs 7.2W Per Meter, 10mm Wide White PCB

Select language

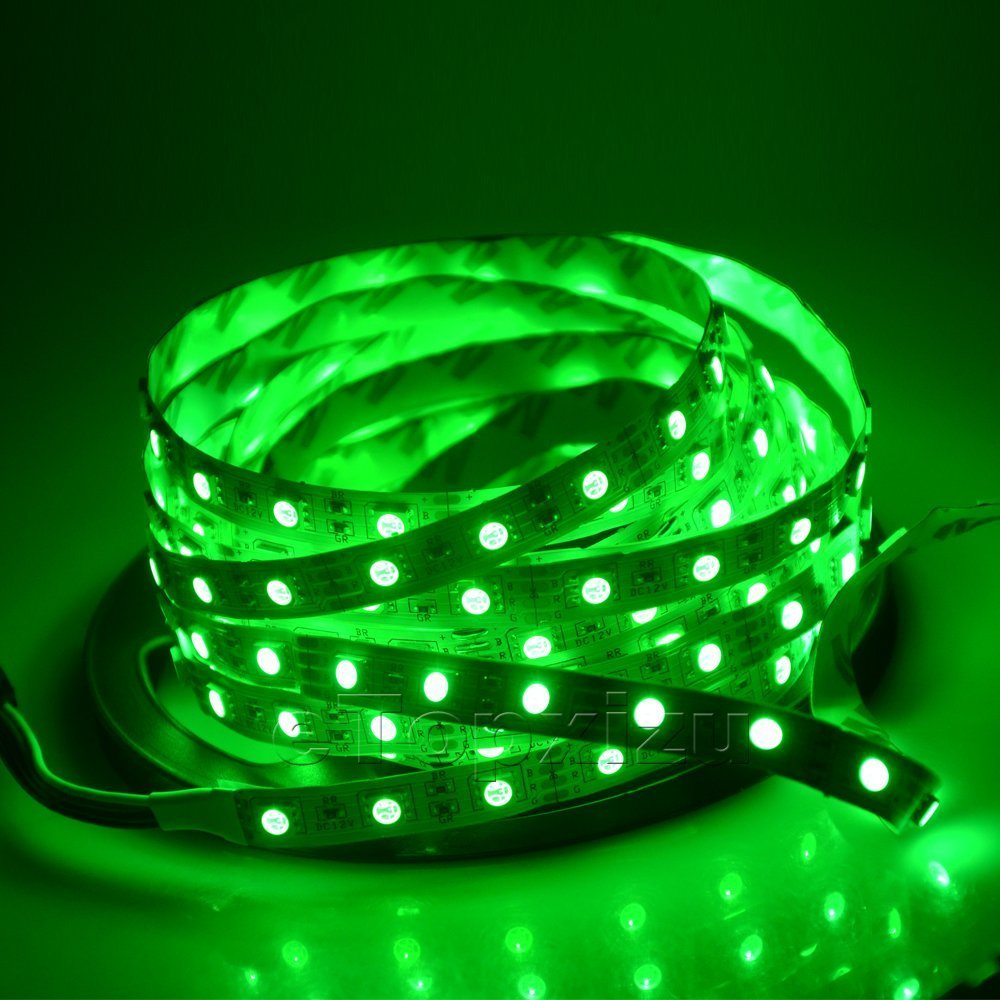

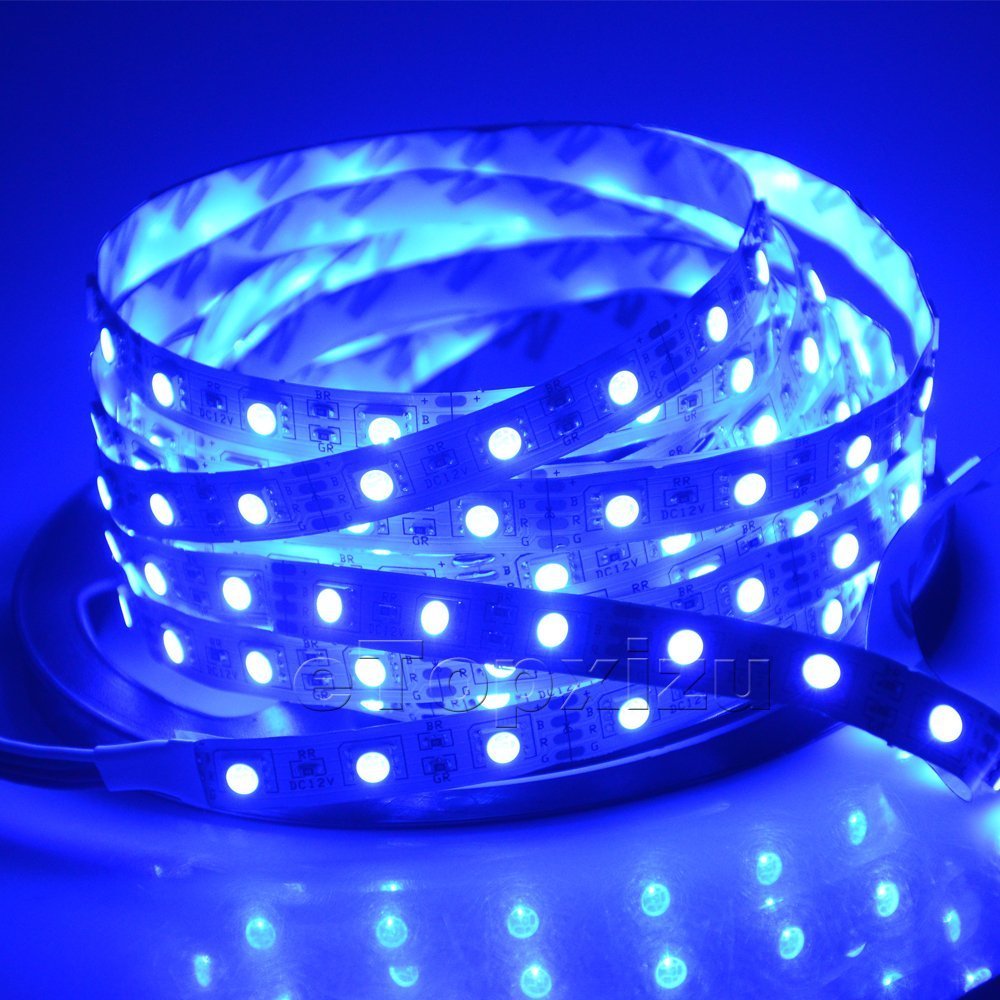

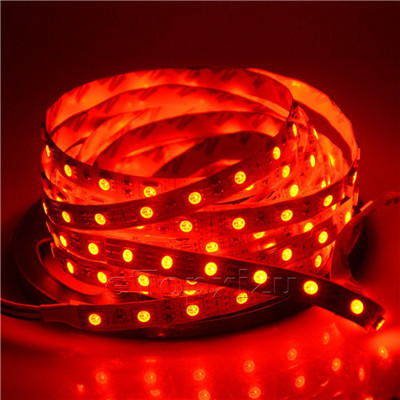

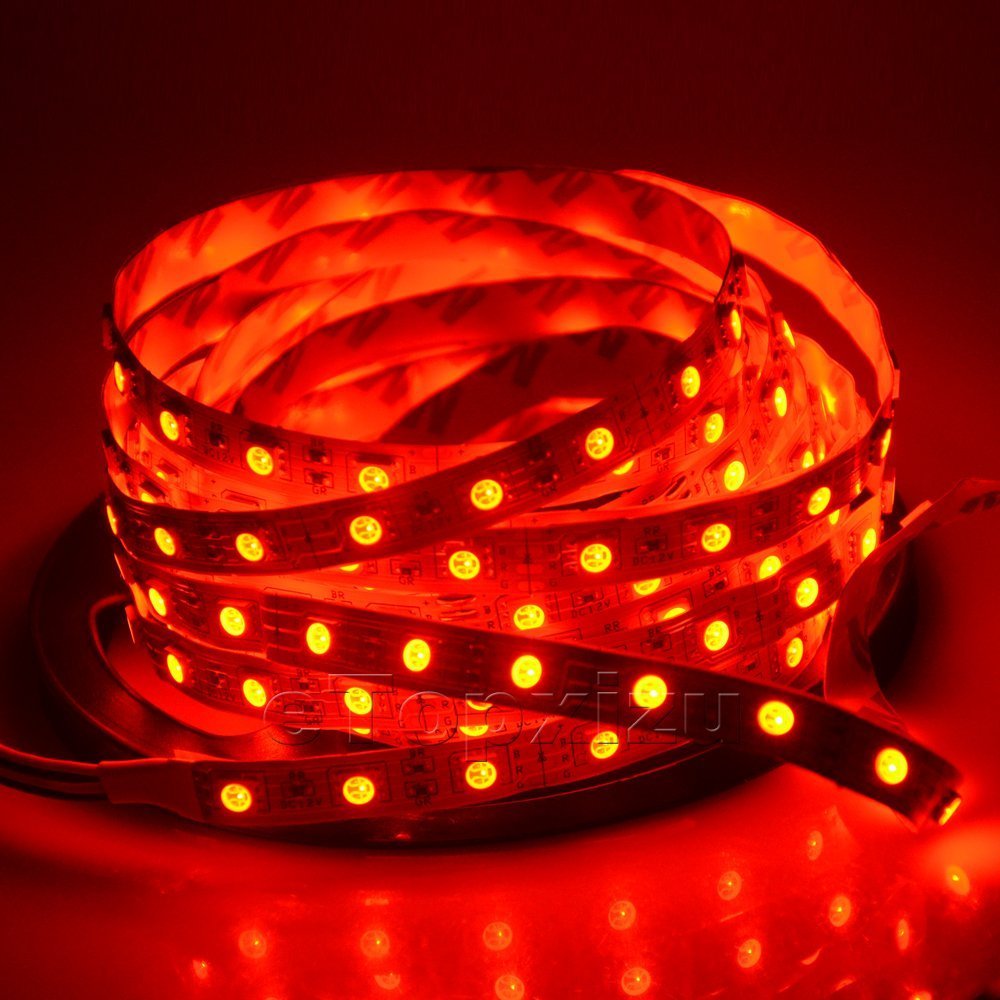

*RGB Color Changing Strip
*Length: SMD5050-150LED per 16.4FT(5Mtr)
*Power: 12VDC <36W 3Amp
*12V DC operating, need to work with 12V transformer if run to wall oulet (non included)
*IP Protection:Non-Waterproof, Waterproof IP65, IP67 and IP68 available
*Control: Need to work with matched RGB controller(non included)
*Easy Installation: With double-sdied adhesive tape back, very sticky that fit for various mounting materials

FEATURES

*LED Manufacture directly,customize accepted;Buy from professional,buy with confidence.
*This LED Strip is used with SMD5050 Chip, 6-7lm/LED,More bright than other cheap strips.
*RGB color changing, can produce multi RGB colors by working with matched RGB LED controller
*Application: Decorative Lighting for Holidays, Parties.

Technical Specification

Wattage	7.2W/Meter	Voltage	12V DC
Beam Angle	120°	Dimming	Yes

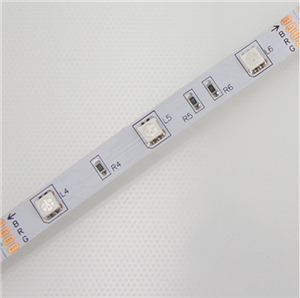

LED Type	SMD5050	Strip Section	3LED per 4inch
WxH	10x2(mm)	LED QTY.:	30LED/Meter
Length Available	5 Meter	Color	RGB
Protection Grade	Non-waterproof, IP65, IP67, IP68	PCB Background	Yellow, White, Black

Other Features

Item	RGB Color Changing 12VDC < 36W, 3Amp SMD5050 300 LED flexible strip, 5meter per roll
Weight	0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
PCB Backing	Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
Lead	Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring	20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip

PACKAGE INCLUDE
1x 16.4ft/5m RGB Color 150LEDs SMD5050 LED Strip(Do not include power supply)

Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

WATERPROOF PROTECTION (the photo tell the difference on Protection Grade and Size Change)

*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
